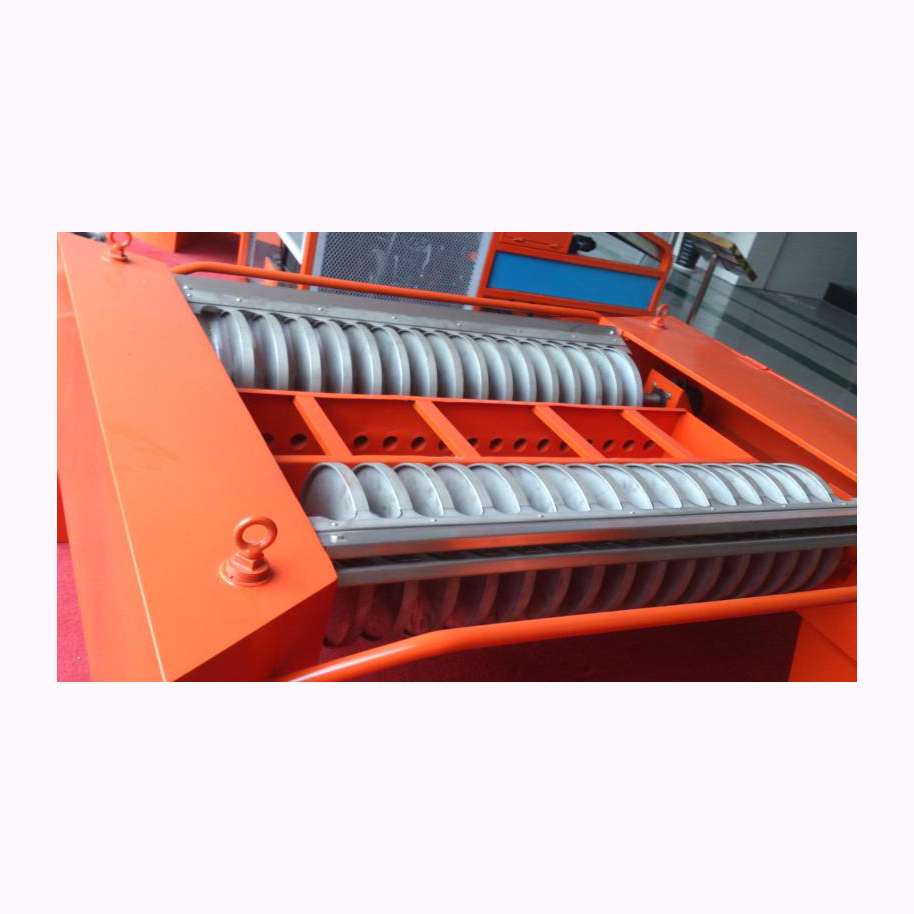

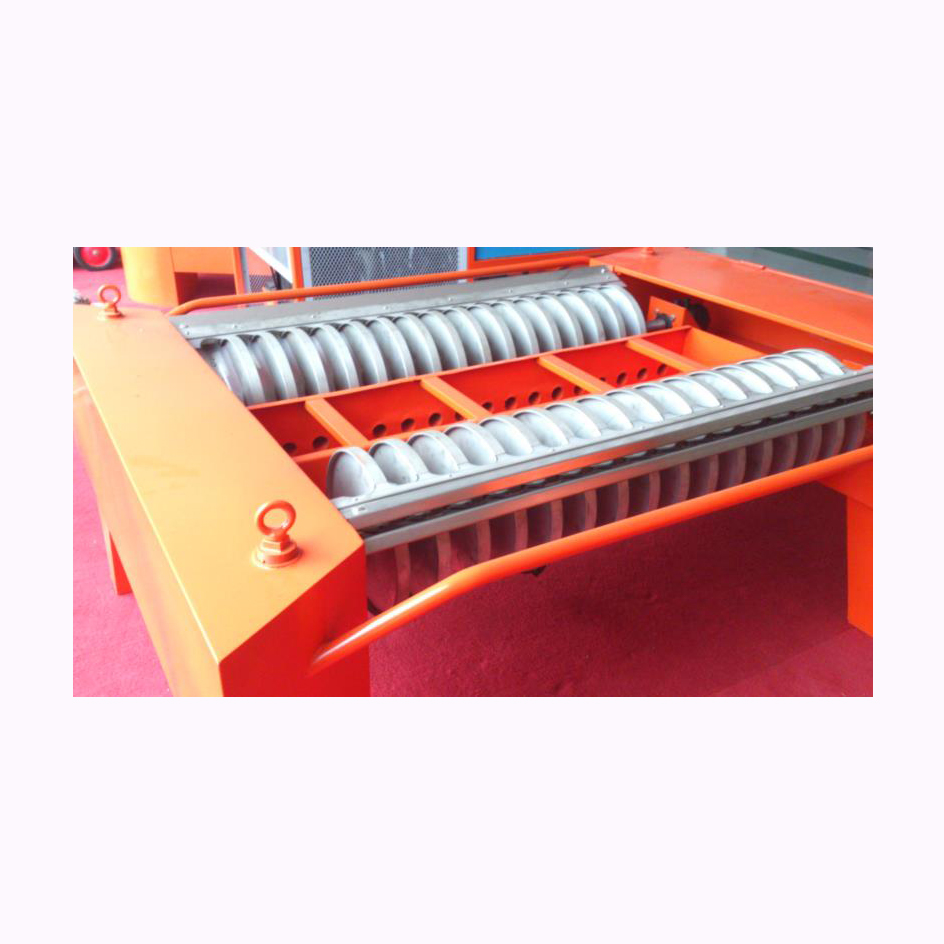

Disc Skimmer

Disc skimmers are highly efficient and will only pick up a very small percentage of water. Equally once the oil has been recovered, if left to operate-will not recover water. The system works as oil sticks to the discs as it is rotated through the oil layer; it is scraped off inside the skimmer head with flexible scrapers. Discs are constructed from PVC, aluminum or steel. The disc banks are driven by hydraulic motors, however electric and air motors are available in some models. It including the following: Disc Skimmer Flotation Unit, Diesel Hydraulic Power Pack (or Pneumatic Compressor), Transfer Pump, and Hoses. The skimmer is connecting with boom and which is assembled on ship or ashore.

Model:
ZY15
Brand:
LHY

Quantity:
Availability:





Inquire Add to Basket

Product Features

Features

With corrosion-resistant glass reinforced plastic, aluminum, stainless steel or flotation unit which can suitable for oil spill in water surface.
It can recover light or medium oil such as grease oil, fuel, vegetable oil and so on.
The rotate speed can be adjusted according to different situation so that can decrease percentages of water ratio in oil spillage recovery.
Specification

Model			ZSY5	ZSY15	ZSY20	ZSY30	ZSY60
skimmer’s head	Recovering rate (m³/h)		5	15	20	30	60
	contour (LXWXH) mm		770X750X350	1100X1100X550	1325X1100X570	1650X1650X700	2400X2400X1750
	weight Kg		30	76	95	170	710
	Draft (mm)		110-150	260-290	280-310	380-420	630-680
Power Pack	Power	Electric motor	3KW	5.5 KW	5.5 KW
	Power	Diesel	4.4 KW	5-6 KW	5-6 KW	22 KW	32 KW
	Type of pump		self-priming
	suck/lift head H2O		5/12M	5/12M	5/12M	5/20M	30M
	weight KG		225	300	300	520	630
Hoses	Diameter (mm)		￠38	￠50	￠50	￠76	￠100
