Features
1. Its framework is made of the double-layer, high strength nylon canvas coated with the oil resistant, ageing resistant, high quality synthetic rubber
2. The unique air valve design allows for easy and speedy inflation and perfect air-tightness
3. Elastic rods are arranged between chambers to make the boom quite stiff to effectively prevent waves from overtopping
4. The tight tensile ballast chains are the barrier preventing the boom body from being broken
5. Either the luminous marking or the color of the rubber coated on the boom can be chosen for easier identification
6. The flame retardant rubber boom can be chosen for the occasion where the high fire rating is required
7. It can be supplied with such accessories as boom tractor, trail rope and anchor block according to the customer’s order.
Features
1. Its framework is made of the double-layer, high strength nylon canvas coated with the oil resistant, ageing resistant, high quality synthetic rubber
2. The unique air valve design allows for easy and speedy inflation and perfect air-tightness
3. Elastic rods are arranged between chambers to make the boom quite stiff to effectively prevent waves from overtopping
4. The tight tensile ballast chains are the barrier preventing the boom body from being broken
5. Either the luminous marking or the color of the rubber coated on the boom can be chosen for easier identification
6. The flame retardant rubber boom can be chosen for the occasion where the high fire rating is required
7. It can be supplied with such accessories as boom tractor, trail rope and anchor block according to the customer’s order.
Performance
It is oil resistant, wear resistant, seawater resistant and high strength.
With superior buoyancy-to-weight ratio and good stability.

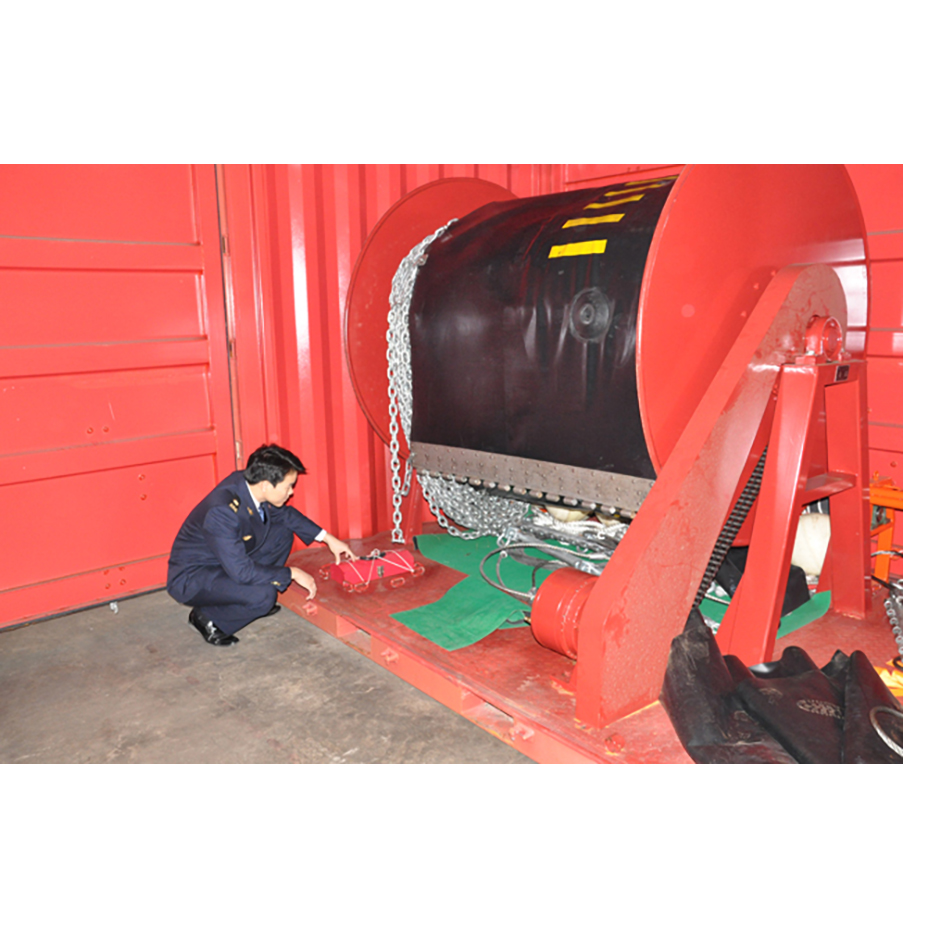

Ultra convenient for storage on boom reels or storage pallets.
With long air chamber so that it is easy to deploy, recovery and store.
Suitable for rivers, docks, harbors, inshore and offshore, especially for emergency oil spill.
Performance
It is oil resistant, wear resistant, seawater resistant and high strength.
With superior buoyancy-to-weight ratio and good stability.
Ultra convenient for storage on boom reels or storage pallets.
With long air chamber so that it is easy to deploy, recovery and store.
Suitable for rivers, docks, harbors, inshore and offshore, especially for emergency oil spill.
Technical Data
Technical Date
Model Parameter | DQJ800 | DQJ1000 | DQJ1200 | DQJ1500 | DQJ1800 | DQJ2000 | DQJ2600 |
Overall height(mm) | 800 | 1000 | 1200 | 1500 | 1800 | 2000 | 2600 |
Freeboard(mm) | 280 | 360 | 400 | 500 | 560 | 600 | 810 |
Draft(mm) | 370 | 430 | 590 | 780 | 950 | 1100 | 1400 |
Max, working tensile strength(kn) | 110 | 140 | 170 | 190 | 230 | 260 | 280 |
Standard length per section(m) | 100/200 | ||||||
Max, wave height to withstand(m) | 2 | 2 | 2.5 | 3 | 3 | 4 | 4 |
Max, wind speed to withstand(m/s) | 15 | 15 | 20 | 20 | 20 | 25 | 25 |
Max, current speed to with stand(KN) | 2-3 | 3 | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 |
Standard connector | ASTM or Stainless steel hinge or pin | ||||||
Dimension of reel (mm) | 1650x2010x2026 | 2000x2200x2013 | 2200x2200x2066 | 2600x2200x2066 | 2680x2200x2066 | 3080x2100x2180 | 3720x2300x2400 |
Drive power of power pack(KW) | 14.5kw | 14.5kw | 14.5kw | 21kw | 21kw | 21kw | 21kw |
Dimensions of container(mm) | 2700x2200x2200 | 2900x2200x2200 | 3200x2200x2200 | 3500x2200x2200 | 4100x2200x2200 | 4300x2200x2200 | 5200x2200x2200 |
1. Its framework is made of the doubl
Note: This information is provided for reference, we reserve the rights to modify in transaction
.
