Features

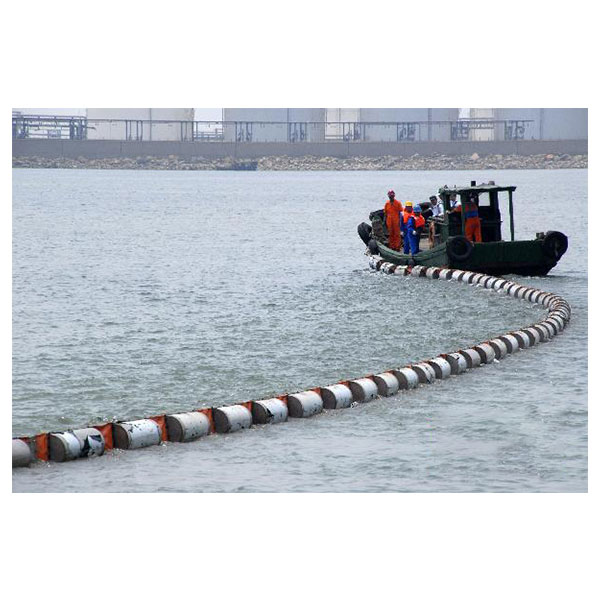

Single, air-inflated cylindrical upper chamber provides buoyancy and freeboard on that portion of boom that is floating in the water.
Twin, water-filled cylindrical lower chambers provide a seal to the land on that portion of boom that is above the water’s edge. Triple chamber design for utmost stability on land and in water.

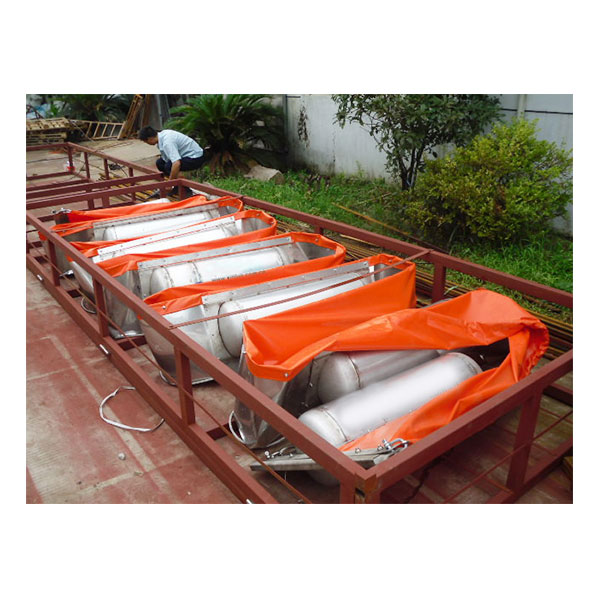

Ultra compact storage dimensions. It is convenient for remove and deploy.
Marine grade extruded aluminum ASTM style end connectors.
Features
Single, air-inflated cylindrical upper chamber provides buoyancy and freeboard on that portion of boom that is floating in the water.
Twin, water-filled cylindrical lower chambers provide a seal to the land on that portion of boom that is above the water’s edge. Triple chamber design for utmost stability on land and in water.
Ultra compact storage dimensions. It is convenient for remove and deploy.
Marine grade extruded aluminum ASTM style end connectors.
Technical Data
MODEL PARAMETER | WQV 700T | WQV 800T | WQV 900T | WQV 1000T | WQV 1200T |
Overall Height(mm) | 700 | 800 | 1000 | 10200 | 1200 |
Freeboard(mm) | 200 | 250 | 300 | 350 | 400 |
Draft(mm) | 280 | 360 | 480 | 600 | 700 |
Section Length(m) | 20 | ||||
Work temperature (℃) | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 |
Wave Height resistance(M) | 0.5 | 0.5 | 0.8 | 1.2 | 1.5 |
wind speed resistance (M/S) | 4 | 5 | 6 | 8 | 10 |
current resistance(Kn) | 0.5 | 0.5 | 0.5 | 1.2 | 1.5 |
Note: This information is provided for reference, we reserve the rights to modify in transaction
.
